T5 SINGLE BATTEN SQ/RD
SKU: 500000000018
Rs. 450
Size / length: 1ft
Choose your options
Specs from Orient Lighting Catalogue 2026–27 (p.12).
Style
Wattage
Color temperature
Catalogue specs · p.12
T5 LED Batten SQ/RD
- Model
- OL-T506
- Wattage
- 6W
- Lumens
- 600 lm
- Color temperature
- Warm light/3000K
How many do I need?
Enter room size to estimate quantity from lumen target (600 lm per unit).
Room: 120 sq ft · Target: 1,800 lumens
3 units needed
Based on 600 lm per unit and living room lighting level. Actual needs vary with ceiling height, paint color, and fixture placement.
Description
T5 LED Batten SQ/RD

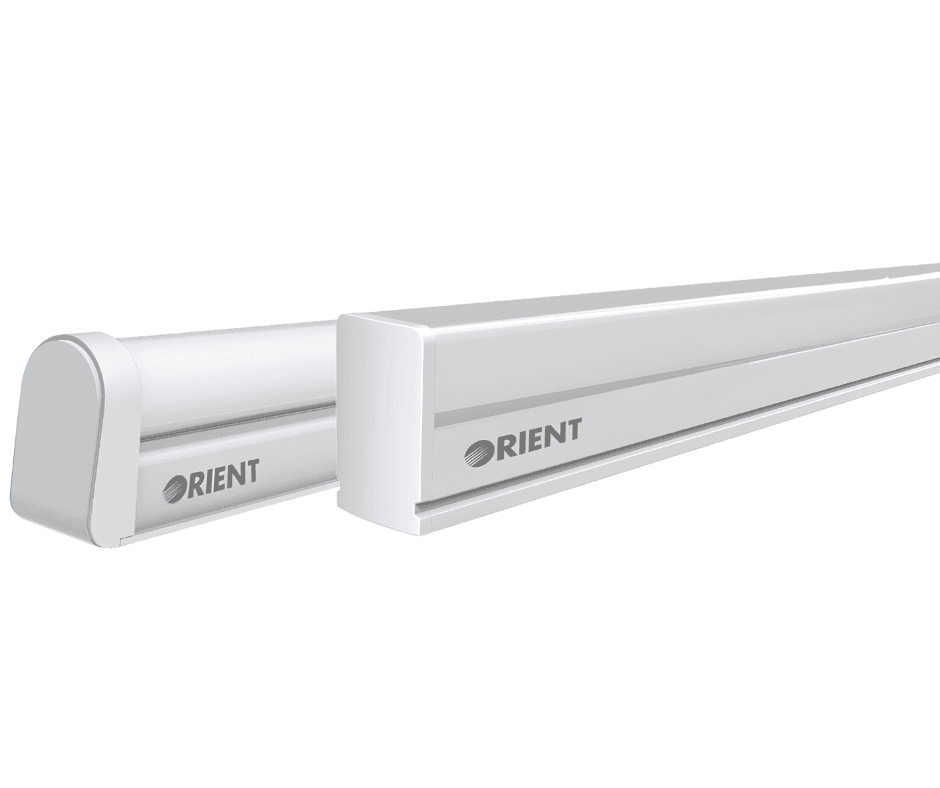

Linkable T5 battens with square/round profiles and centre or side connection.
Specifications
| Model | Wattage | Shape | Lumens | Housing Material | Size |
|---|---|---|---|---|---|
| OL-T506 | 6W | Square / Round | 100 lm/W | Polycarbonate | 300 × 68 mm |
| OL-T510 | 10W | Square / Round | 100 lm/W | Polycarbonate | 600 × 68 mm |
| OL-T518 | 18W | Square / Round | 100 lm/W | Polycarbonate | 1200 × 68 mm |
Features
- Polycarbonate housing
- Centre/side connection
- Square & round options
Electrical & Performance
- Power Factor: 0.5
- IP Rating: IP22
- CRI: ≥80
- Surge Protection: 2.5KV
- Lifetime: 25,000 Hours
- Input Voltage: 85–256V
Applications
Shop, Restaurant, Hotel, Museum, Lobby
Warranty: 1 Year
